Catalog / Modulation & CV / Slope LFO
Modulation & CV

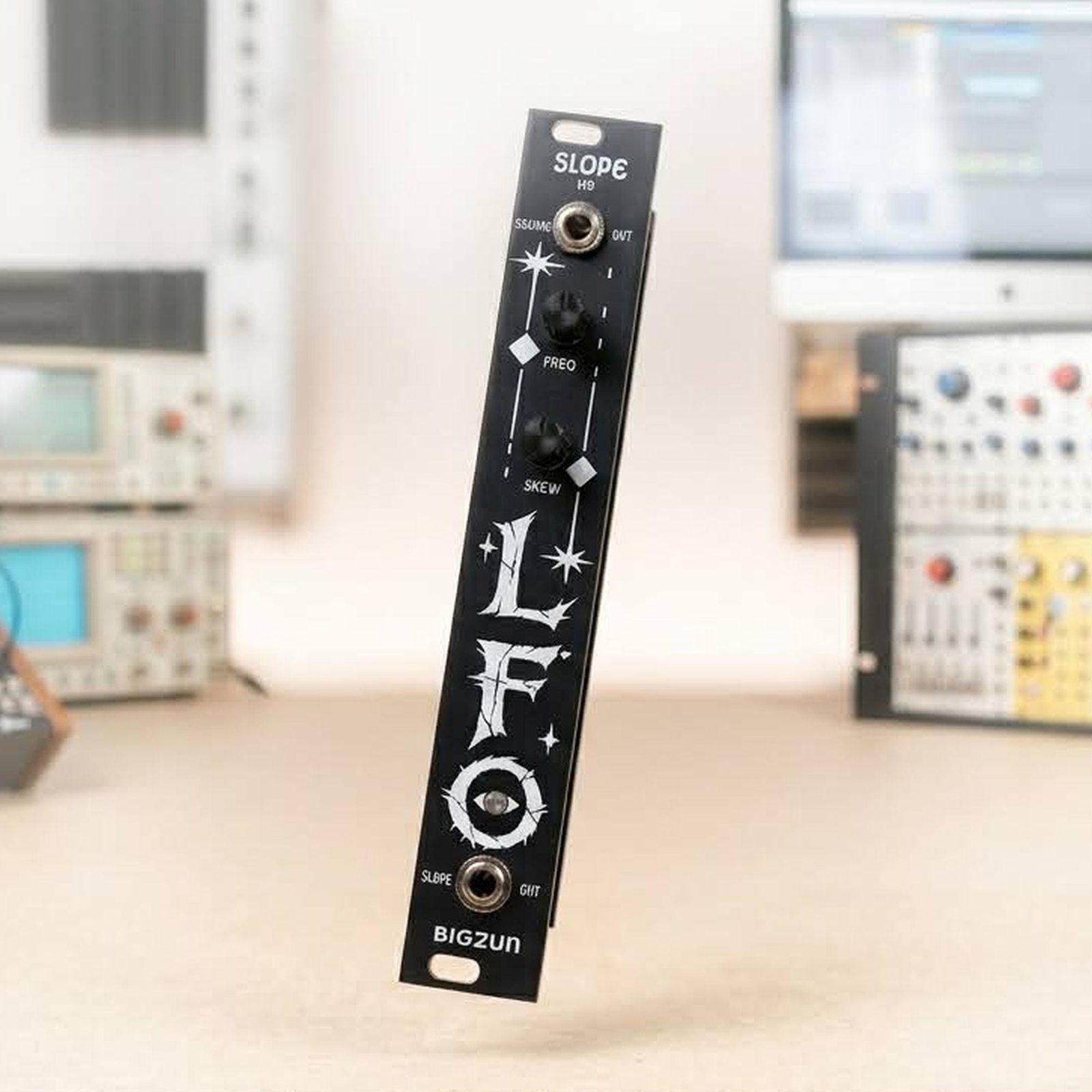

Slope LFO
Analog LFO with square & slope outputs
A compact analog low-frequency oscillator built on a classic comparator + integrator core, dressed in a mystic-geometric panel. From ultra-slow evolving modulation to fast tremolo-like movement.
Features
- Two waveforms: SQUARE and SLOPE
- SQUARE — perfect for clocks, triggers and rhythmic modulation
- SLOPE — ramp / triangle waveform with adjustable shape
- Frequency range approx. 0.1 Hz – 20 Hz
- Controls: RATE and SLOPE / SHAPE
Specifications
| Outputs | SQUARE, SLOPE |
|---|---|
| Controls | RATE, SLOPE / SHAPE |
| Range | approx. 0.1 – 20 Hz |
| Power | ±12 V |
| Format | Eurorack, 4 HP |
Videos
Slope LFO — square & slope outputs
