Catalog / Modulation & CV / Dual Attenuverter
Modulation & CV

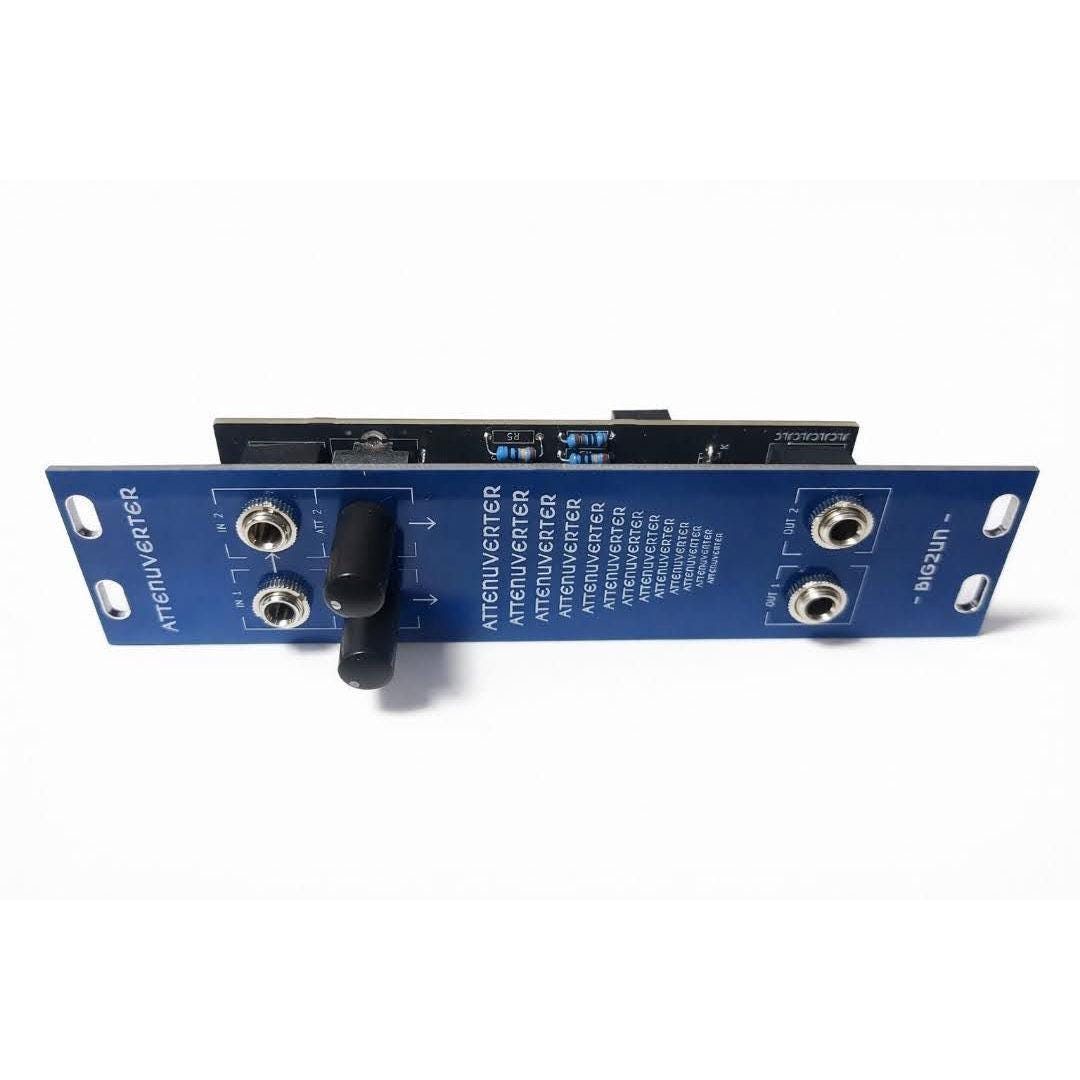

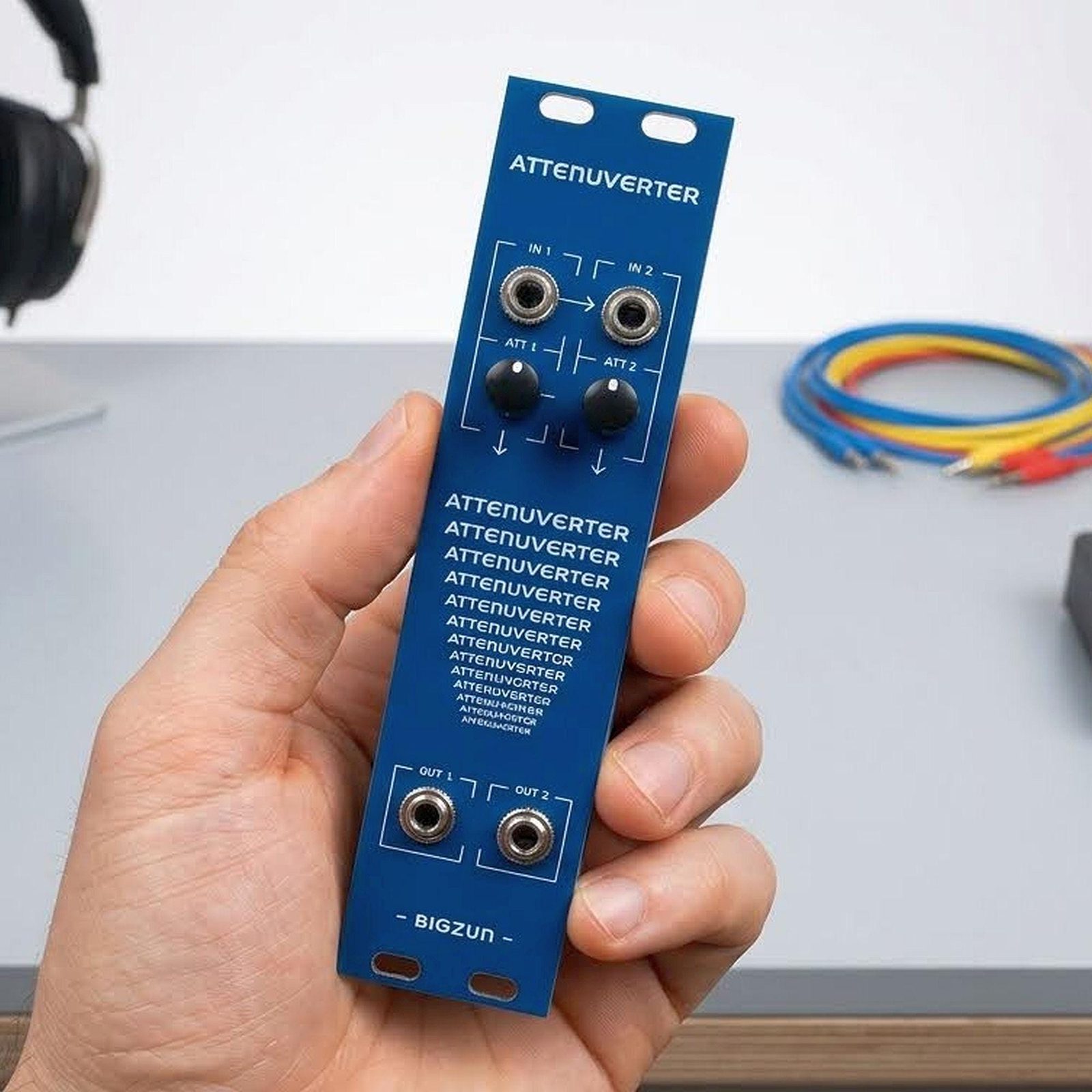

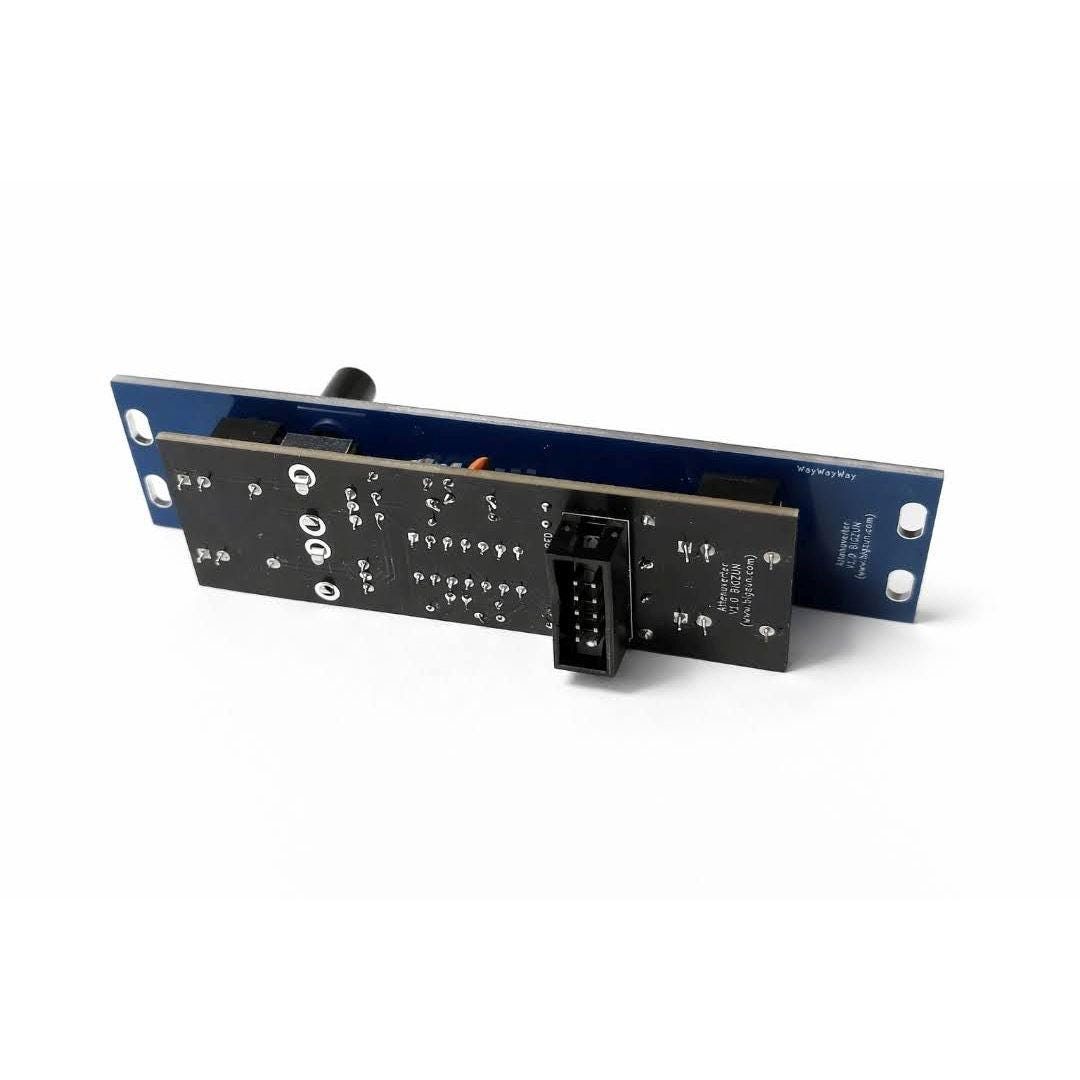

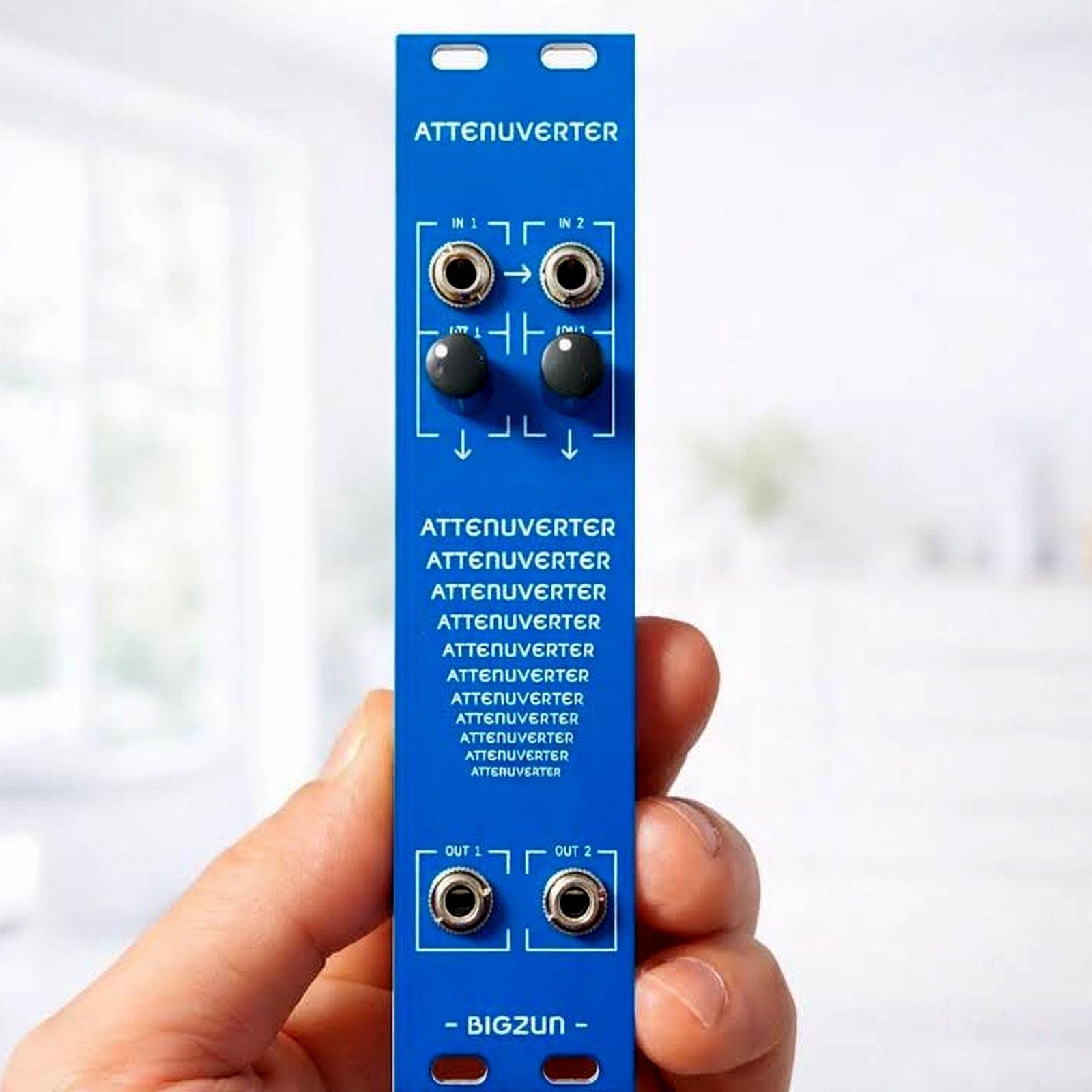

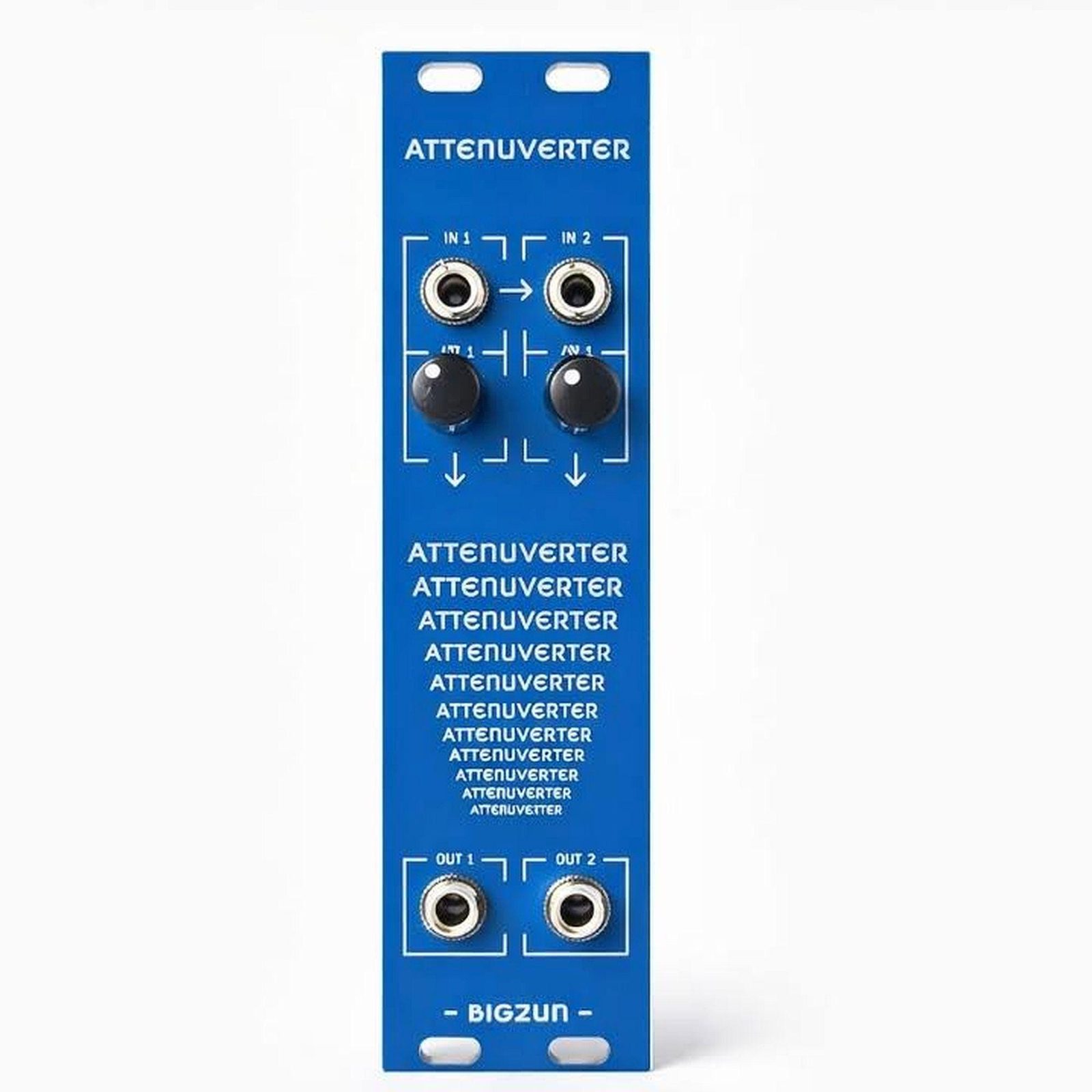

Dual Attenuverter
Active dual CV / audio processor
Two active attenuverter channels for precise modulation control: attenuate, amplify, invert and offset any CV or audio signal — with no signal loss and no passive compromises.
Features
- 2 independent attenuverter channels
- Full range: from complete inversion to full amplification
- Adjustable ±5 V offset
- Active, op-amp based design — no signal loss
- Works with CV and audio
- Ideal for shaping modulation depth and polarity — LFO → VCO / VCF / VCA
Specifications
| Inputs | 2 × IN |
|---|---|
| Outputs | 2 × OUT |
| Offset | ±5 V |
| Depth | 25 mm |
| Power | +12 V 25 mA / −12 V 25 mA |
| Format | Eurorack, 6 HP |
