Timewind Project
Out Of Even
10-output clock divider with odd divisions
A clock divider with ten simultaneous outputs. Besides the classic binary divisions it gives you /3, /5 and /7 in their own boxed section — polyrhythms and odd meters from a single clock.
Features
- 10 outputs: /2, /3, /4, /5, /7, /8, /16, /32, /64, /128

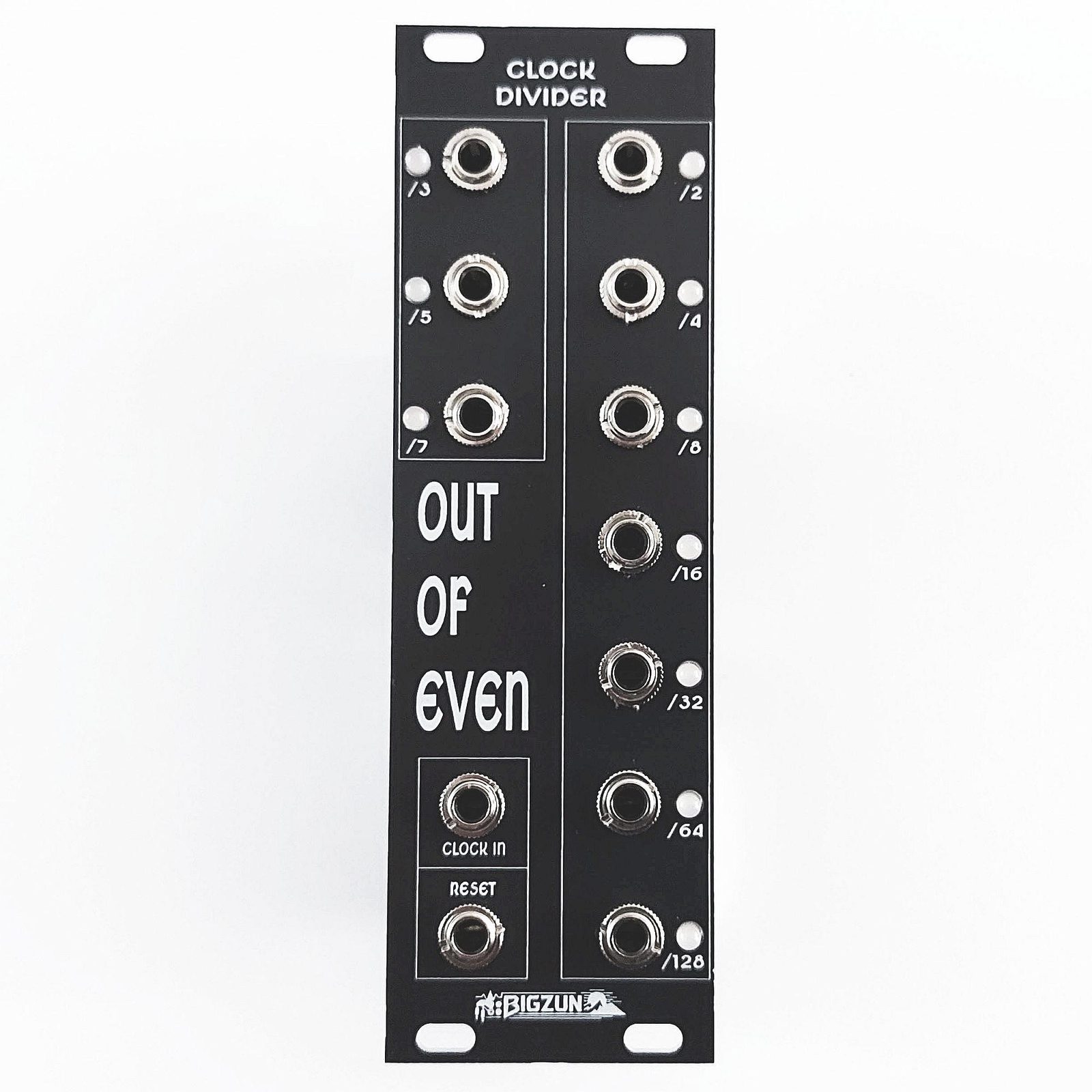

- Odd divisions /3, /5, /7 in a separate section of the panel
- One LED per output
- Gate mirrors the input pulse width — no fixed trigger length, no toggle
- No leftover time with odd divisions — outputs are gates, not square waves
- RESET input clears all counters; the first pulse after reset fires all outputs
- Protected inputs; outputs with series resistor and diode
- No menus, no settings — ready the moment it is powered
Specifications
| Inputs | CLOCK IN, RESET |
|---|---|
| Outputs | 10 × gate: /2 /3 /4 /5 /7 /8 /16 /32 /64 /128 |
| Indicators | 10 × LED |
| Max. clock | approx. 1 kHz |
| Depth | 2.5 cm |
| Power | ±12 V, under 100 mA |
| Format | Eurorack, 8 HP |
| Line | Timewind Project |
User manual
Videos
Out Of Even — overview
