Multiples

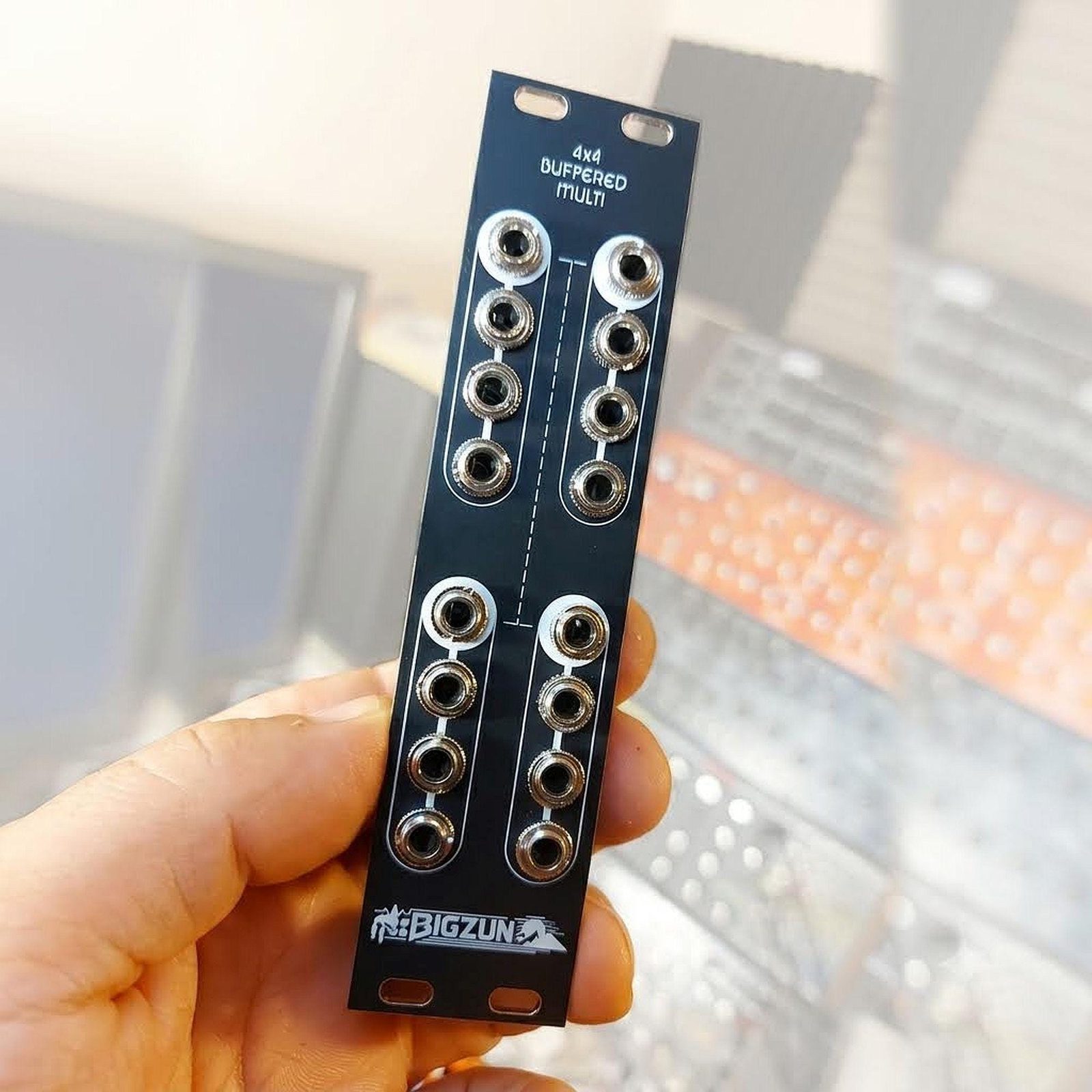

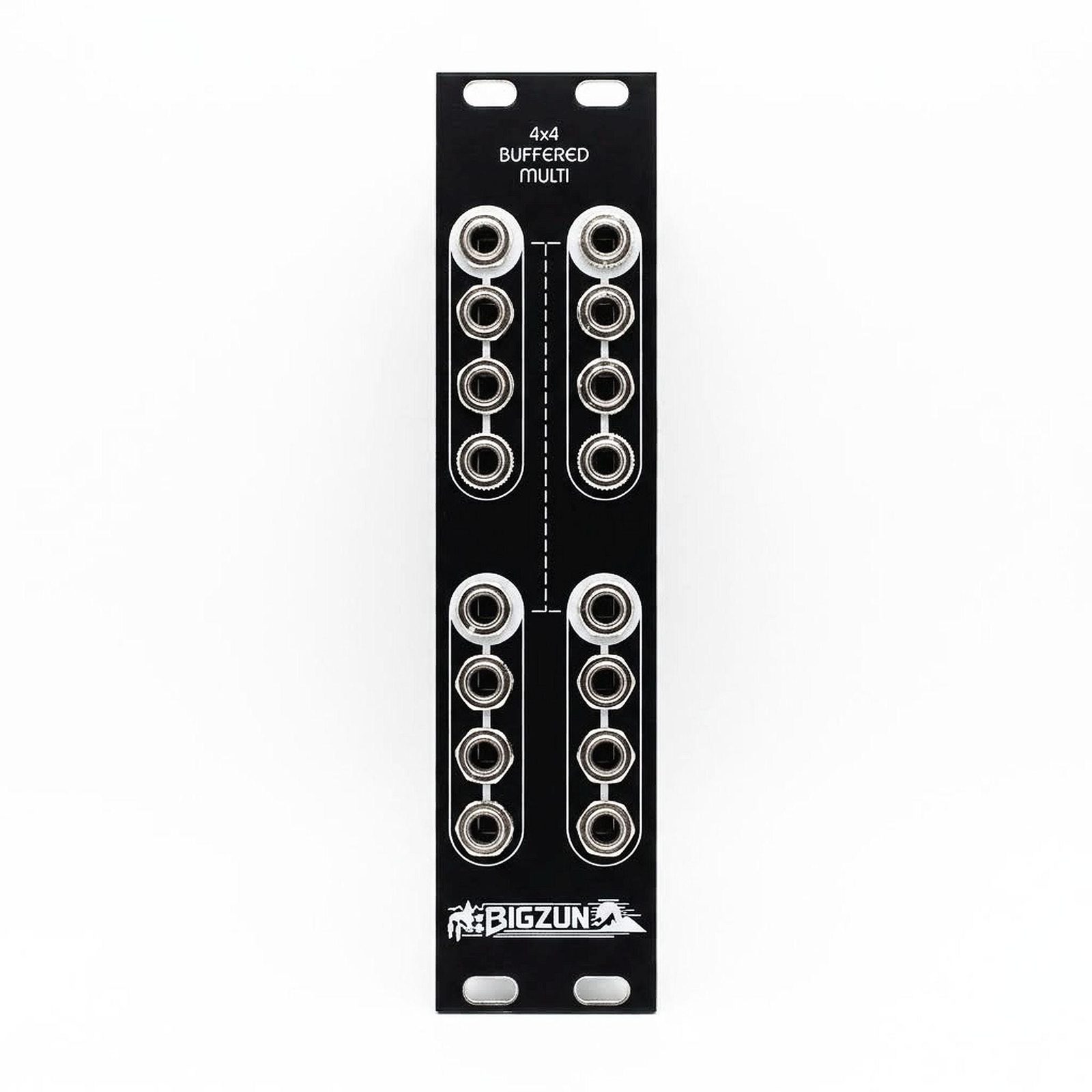

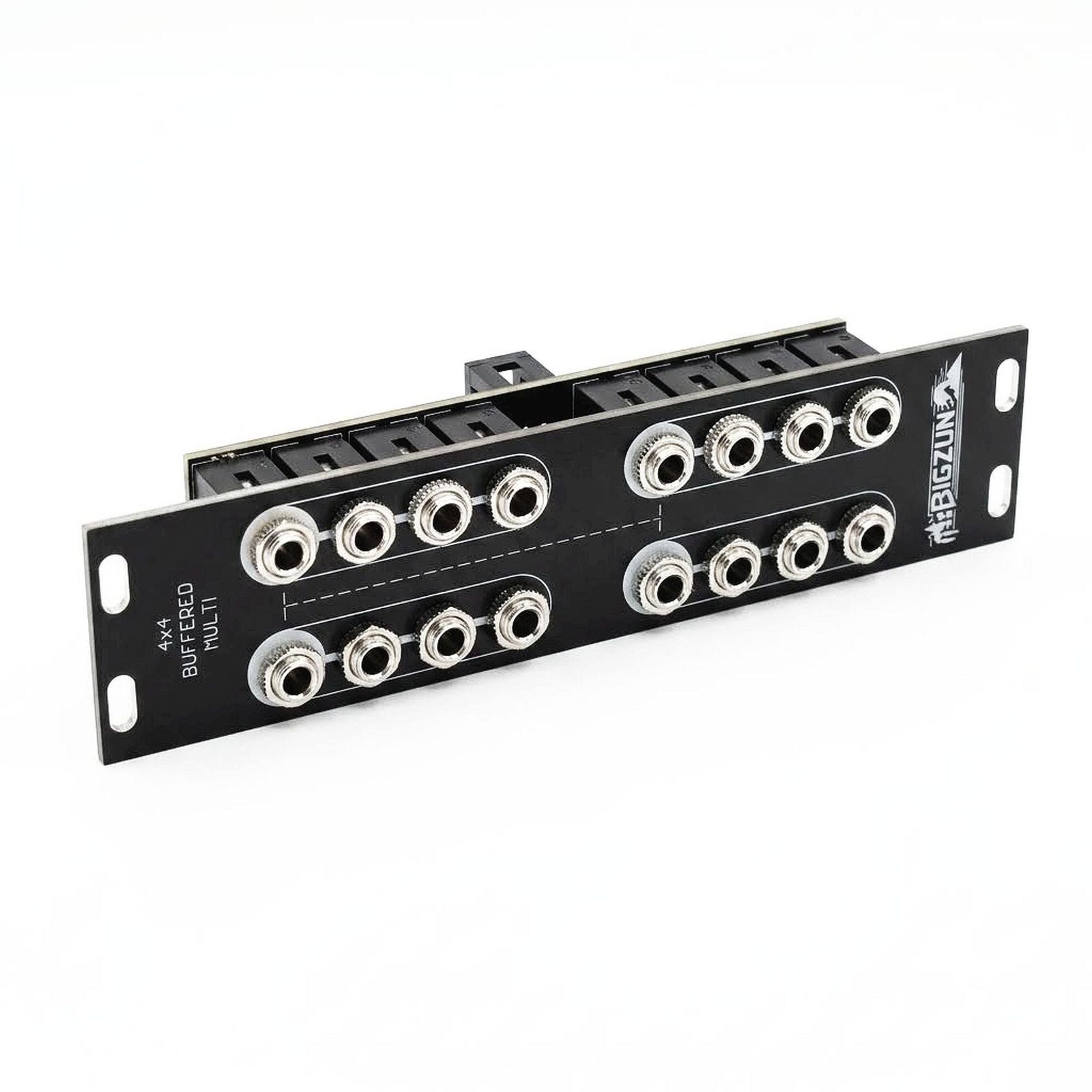

4×4 Buffered Multi
Active buffered signal splitter
A compact, precise signal splitter: every channel is fully buffered, so CV and audio levels stay stable no matter how many outputs you use.
Features
- 4 independent buffered sections

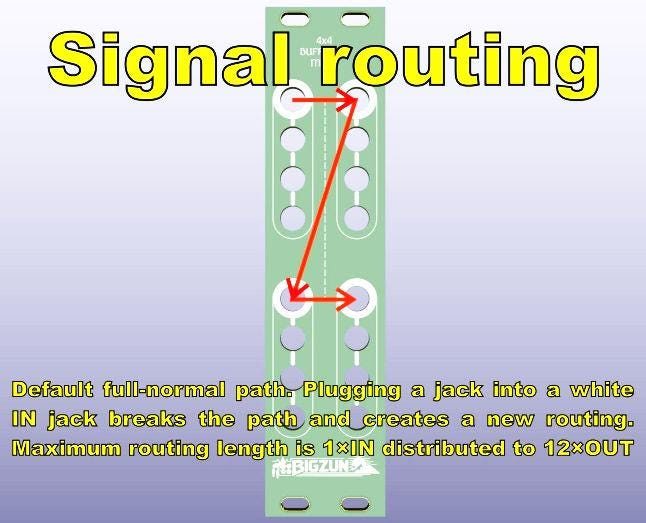

- Full-normal routing on the white IN jacks — up to 1 × IN to 12 × OUT
- Patching an IN jack breaks the chain and starts a new section
- Stable pitch CV distribution without voltage drop
- Great for sequencers, LFOs, envelopes and audio
Specifications
| Sections | 4 buffered |
|---|---|
| Max. routing | 1 × IN → 12 × OUT |
| Format | Eurorack, 6 HP |
