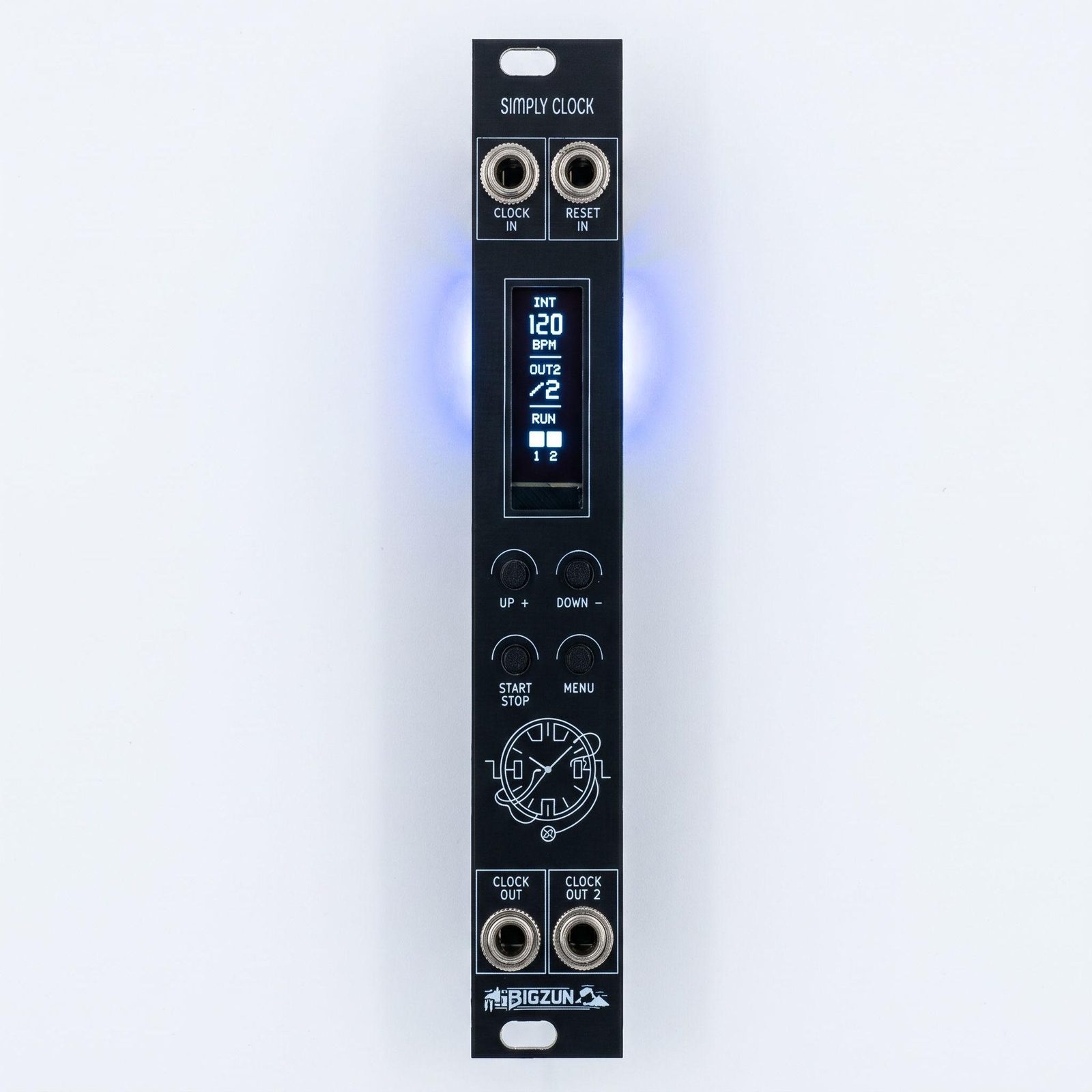

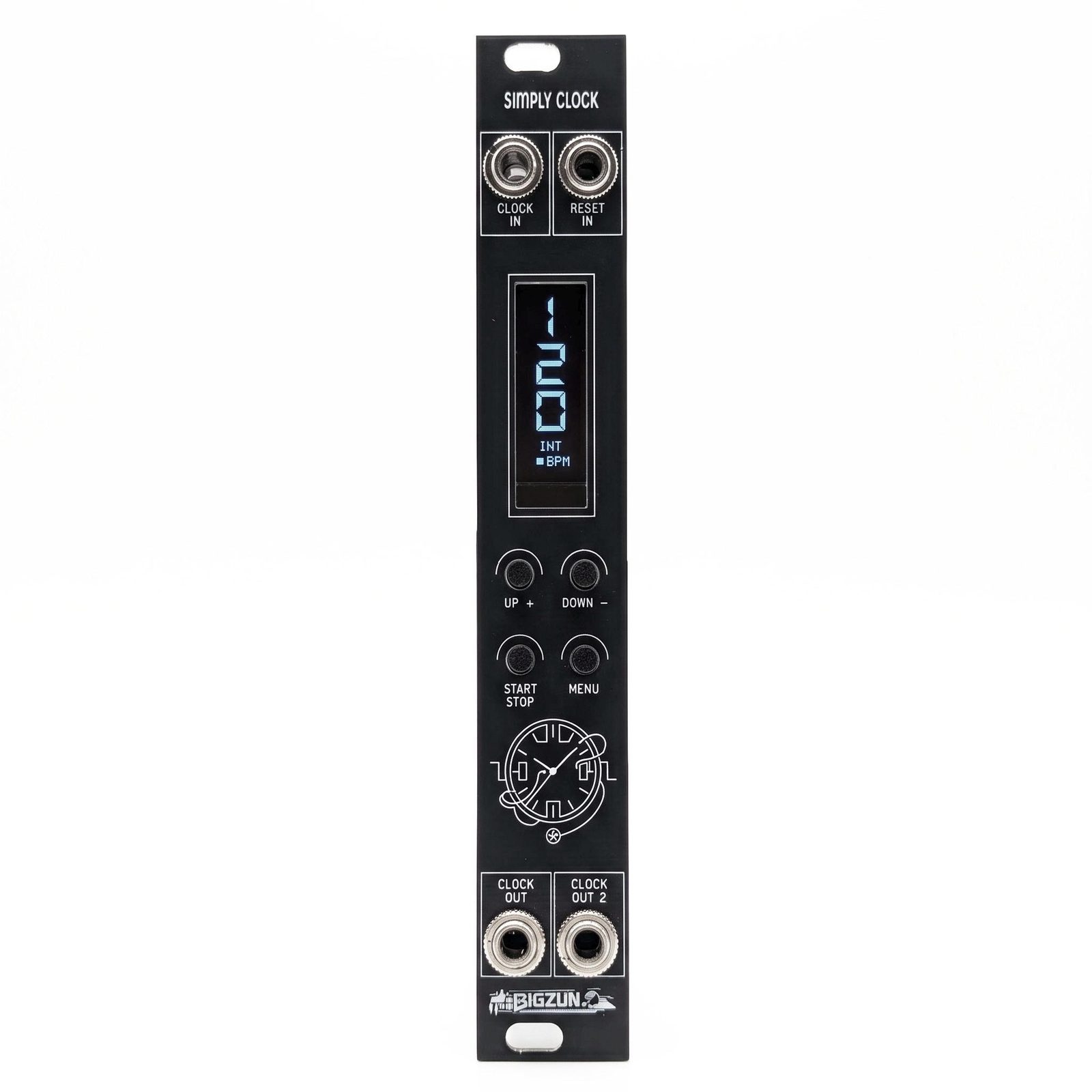

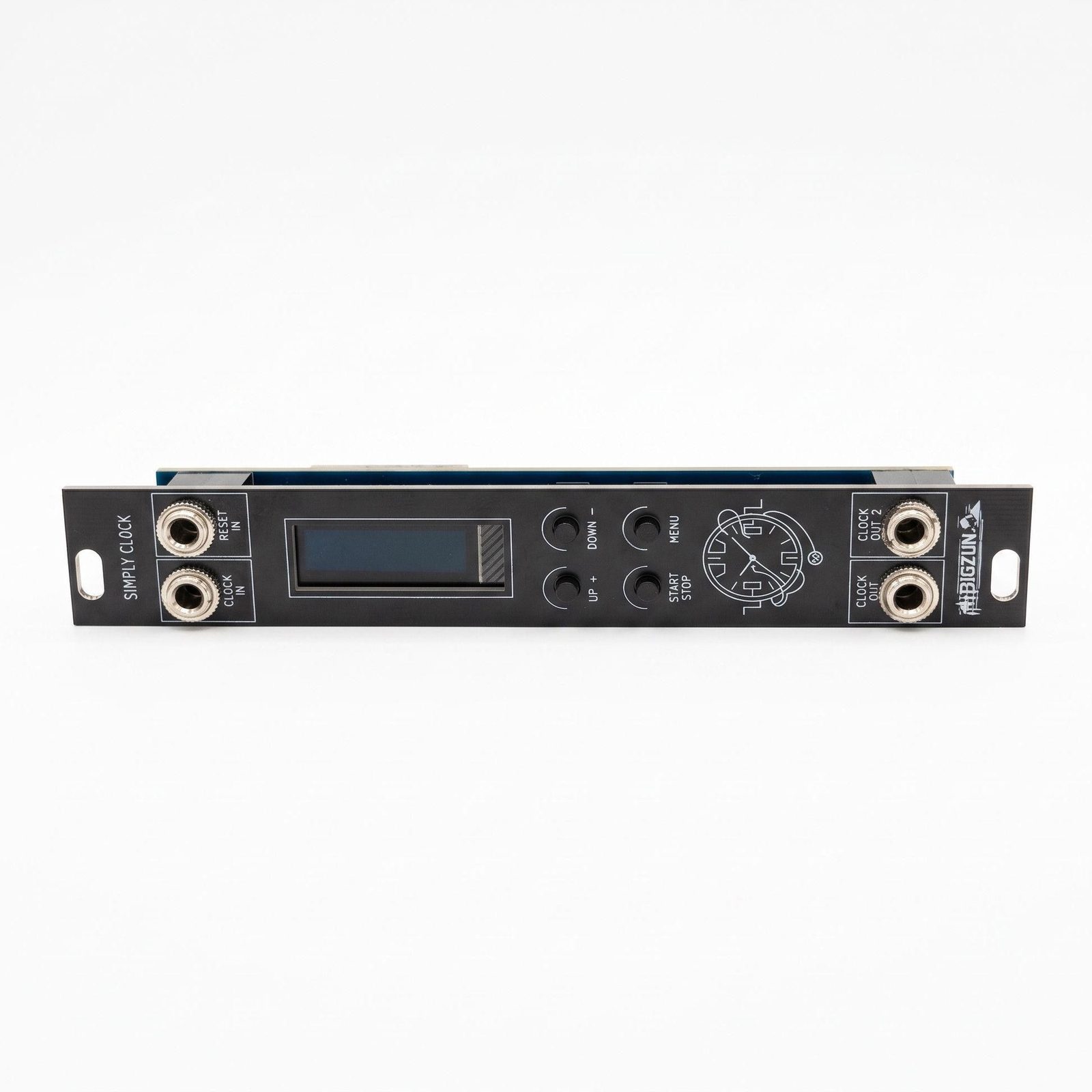

Simply Clock

A compact master clock, just 4 HP wide. Set the tempo from 1 to 400 BPM with two buttons, or patch in any clock and it follows automatically. A second output divides or multiplies the clock, from /1024 up to x8.

Features

• Internal clock 1–400 BPM — tap for single steps, hold to accelerate
• CLOCK IN — external clock detected automatically, back to internal 2 s after it stops
• START on external clock waits and starts exactly on the next incoming pulse
• RESET IN — a new bar instantly: both outputs restart, the divider counts from zero
• CLOCK OUT — one pulse per beat
• CLOCK OUT 2 — /1024, /512 … /4, /2, x2, x4, x8
• Pulse length: 50 % gate or 1, 2, 5, 10, 20, 50 ms trigger — never longer than half a period

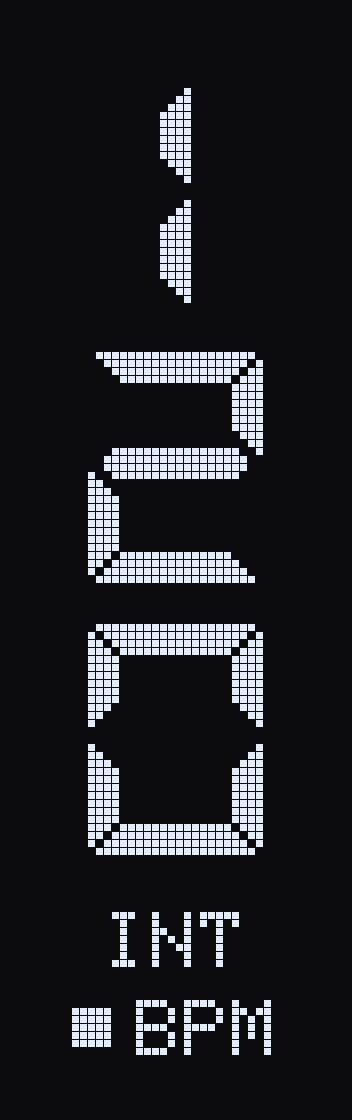

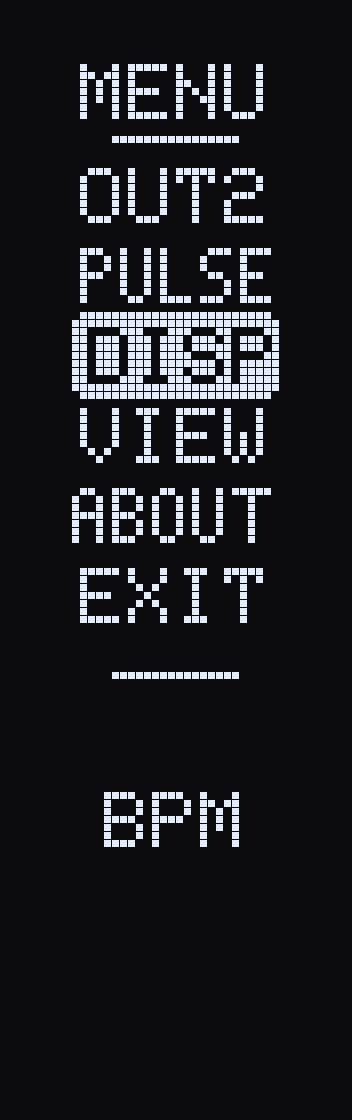

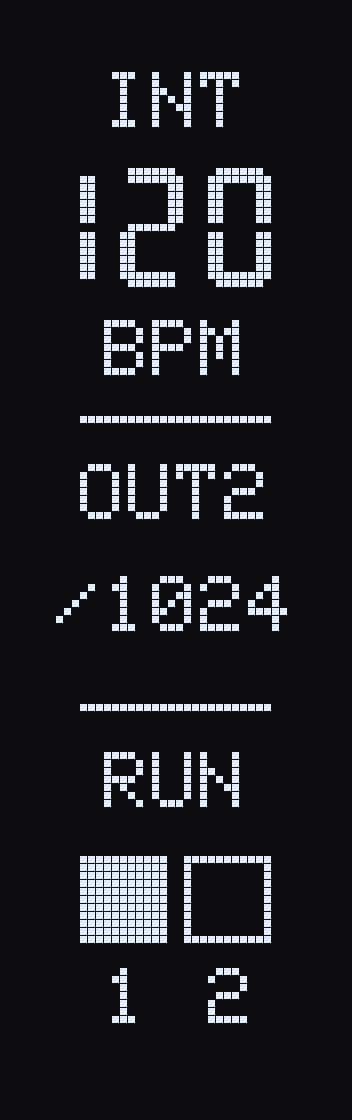

• Two screens: SIMPLY (big digits) and ADVANCED (everything at once), tempo in BPM or Hz
• All settings saved automatically; always starts in STOP at power-up
