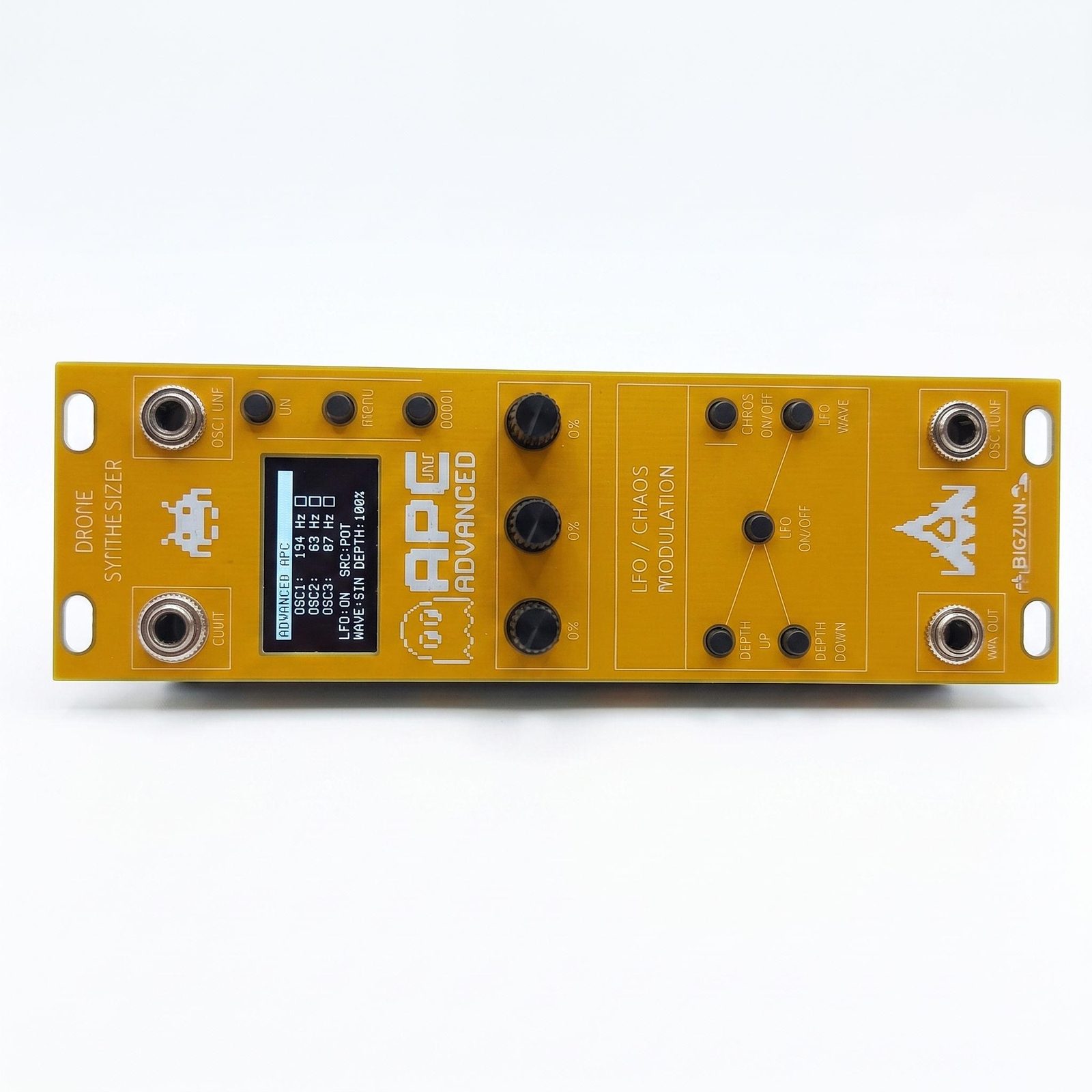

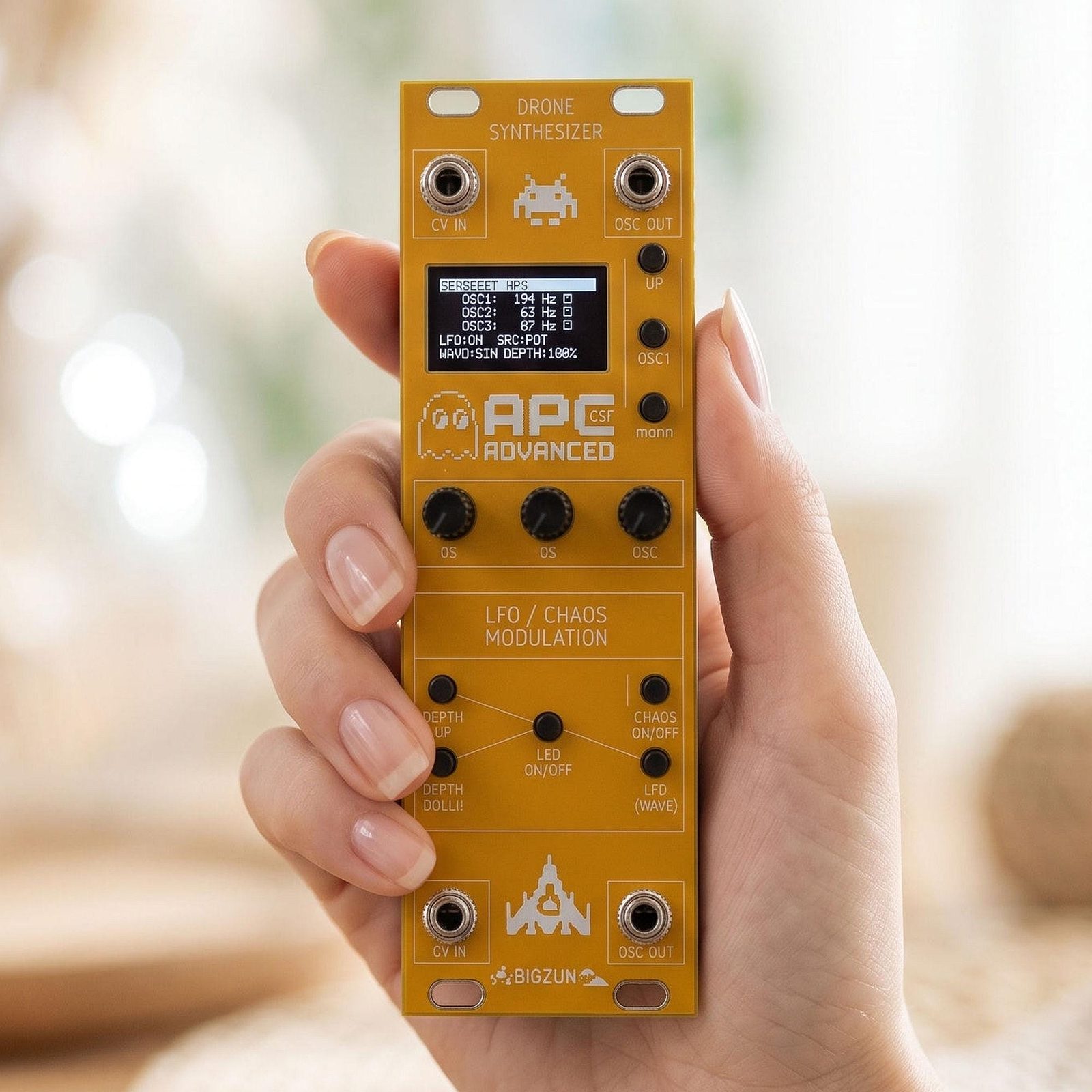

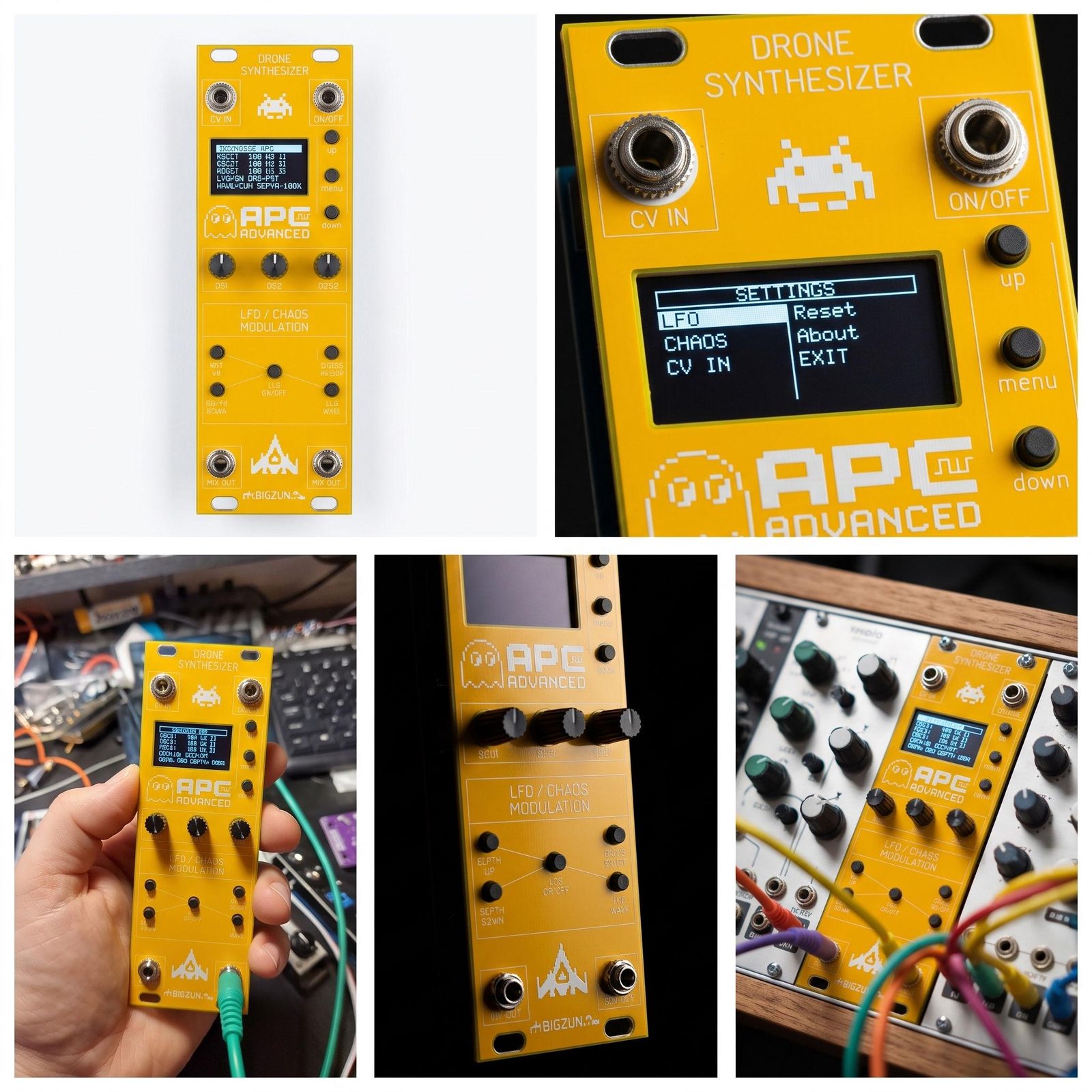

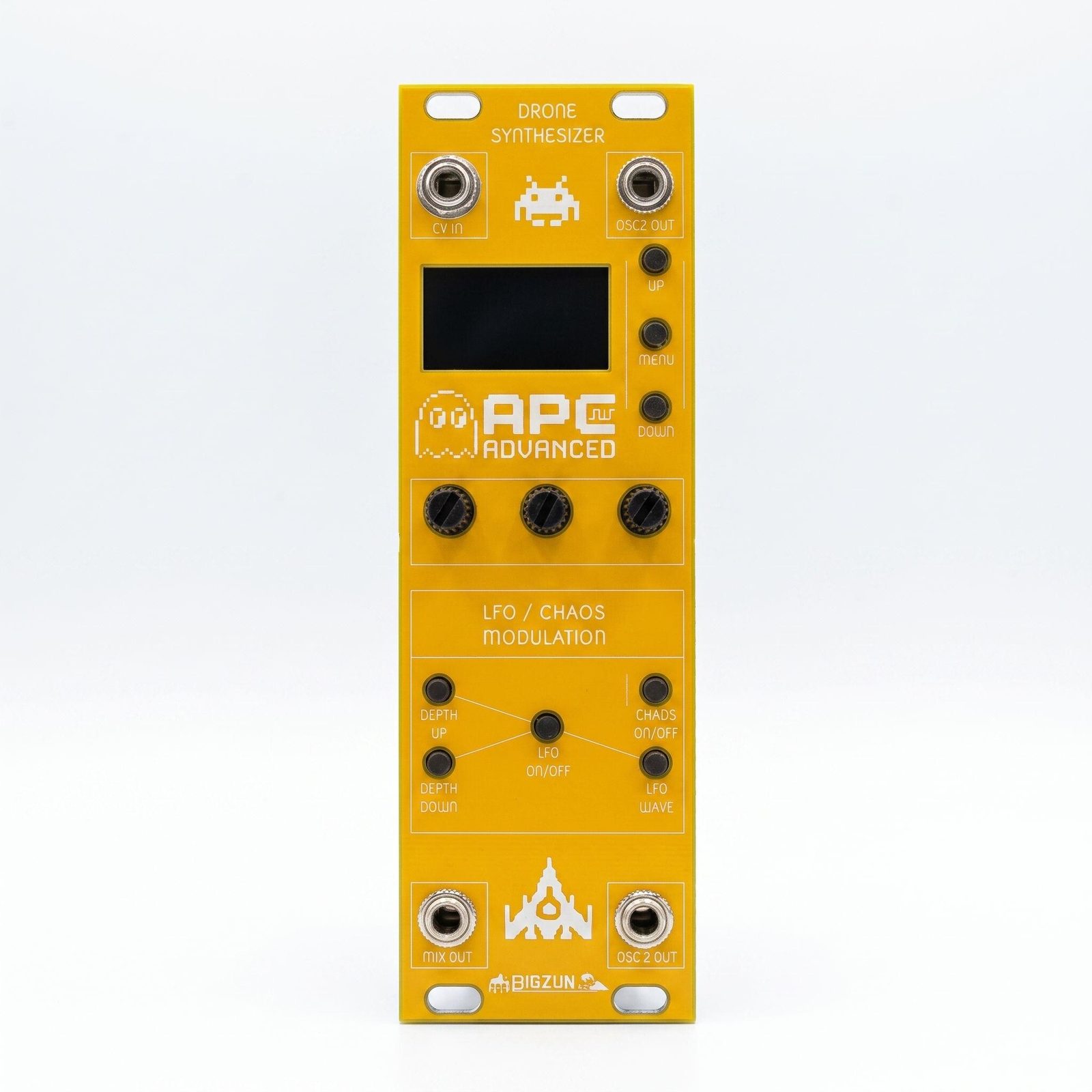

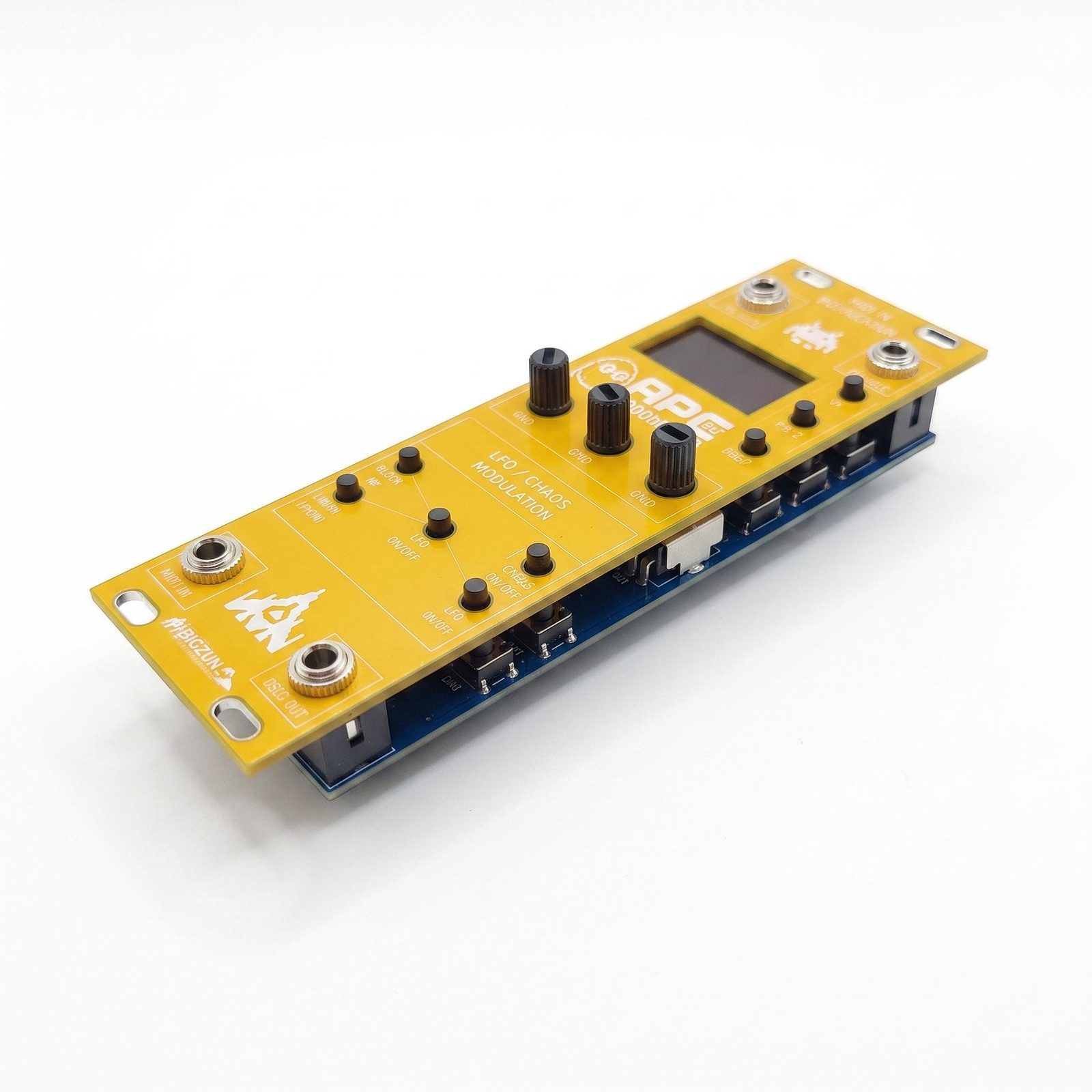

Advanced APC
3-oscillator Atari Punk Console
A digital adaptation of the classic stepped-tone Atari Punk Console, rebuilt on a stable digital core with three oscillators. They are not simply mixed — they form one chain, giving a stepped, punchy, slightly broken rhythm that never quite repeats.
Features
- 3 cascaded oscillators, 20 Hz – 3 kHz each
- OSC 2 runs only while OSC 1 is high, OSC 3 only while OSC 2 is high
- Every rising edge of OSC 3 hard-syncs OSC 1
- LFO mode — every oscillator gets its own LFO, depth 0–200 %
- CHAOS mode — random jumps and random-speed glides, never the same twice
- CV IN — an external signal takes over all three oscillators
- Live readout of every oscillator on the OLED
- Settings: LFO speed range, chaos interval, CV sensitivity, factory reset — saved automatically
Specifications
| Inputs | CV IN |
|---|---|
| Outputs | OSC1 OUT, OSC2 OUT, MIX OUT |
| Knobs | OSC 1, OSC 2, OSC 3 |
| Display | 128×64 OLED |
| DAC | 12-bit |
| Format | Eurorack, 8 HP |
| Line | Timewind Project |
